TWIST-LOCK DOUBLE-WALLED SET 4 LOW THROUGH-WALL
Datasheet Twist-Lock JustFire Nederland BV.
|
Material |
Stainless Steel, AISI 316L |
|
Inner Diameter |
80-130 |
|
Height |
SET4 LOW ENTRY
2X 1000MM
2X 340-500
1X T
1X T CAP
1X T ADAPTER
3X BRACKET
1X PLATE 500
1X RAINCAP
|
|
|
|
|
Classification Temperature |
600° |
|
Colour |
Black Powder Coated |
|
Certification |
CE Mark, TÜV certification Patented design 80-130mm |
More information

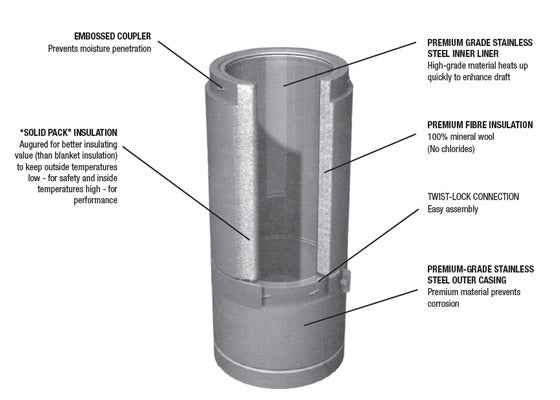

Twist-Lock double-walled insulated flue pipes, made of high-quality stainless steel, AISI316L, with a maximum protective temperature tested up to 600 degrees and a very beautiful finish. All pipes are tested by Tüv and CE.

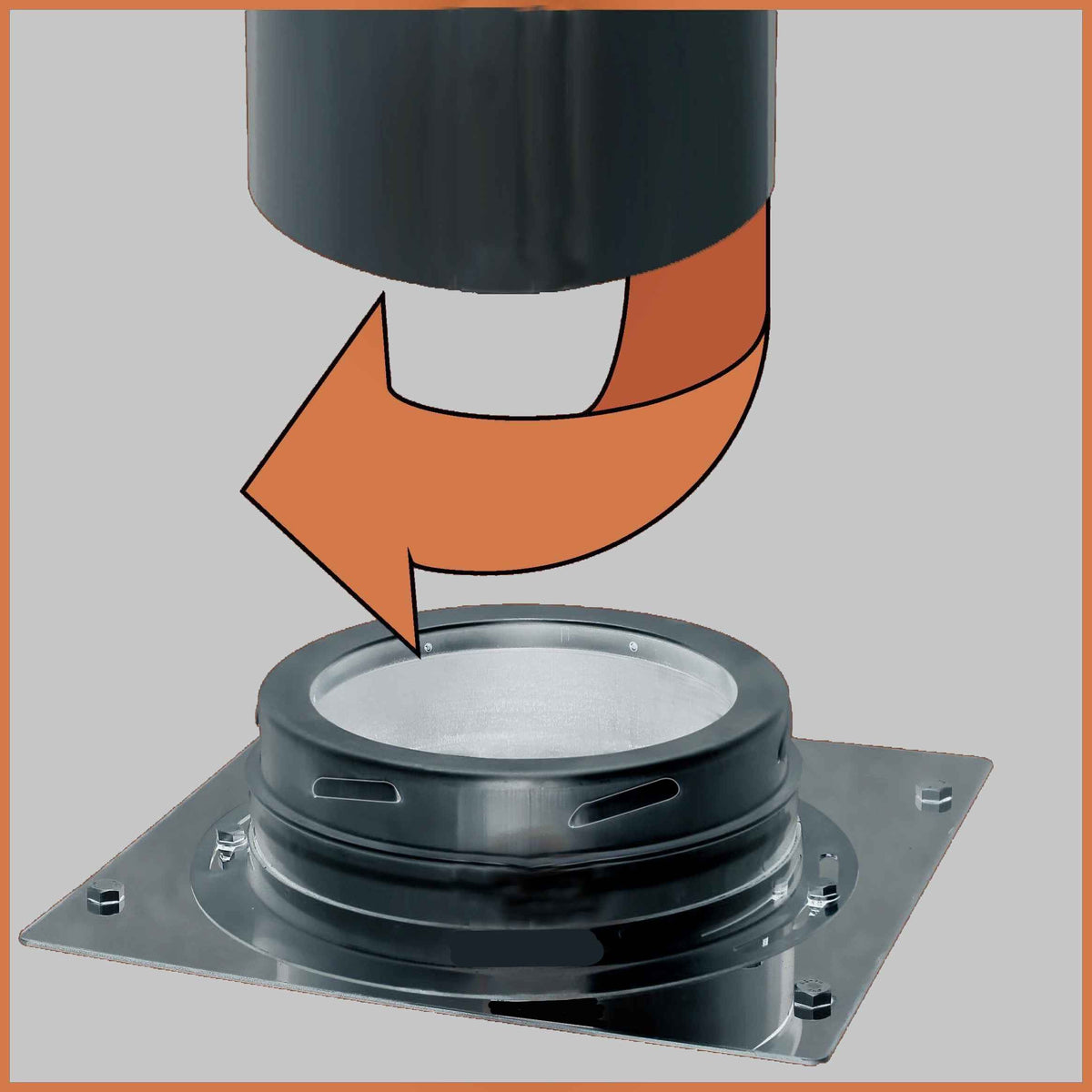

Using the simple Twist-lock system, you can easily twist the pipes, bends, etc., together. The extra rubber seal also provides additional protection against leaks. All pipes have a filling of “High Purity” “Pure Wool” insulation material. This is a ceramic insulation blanket, fire-resistant and resistant to temperatures up to 1250 degrees.
Twist-lock is a patented system. 80mm inner wall and 130mm outer dimension specially designed and manufactured for JustFire Nederland.
Due to the low price (equal to other double-walled channels without twist lock), an excellent choice!
Twist-Lock 80mm is a patented product and only available for purchase from JustFire Nederland BV, in the Netherlands, Belgium and Germany.
Product Information
Product information
Twist-Lock double-walled insulated flue pipes, made of high-quality stainless steel, AISI316L, with a maximum protective temperature tested up to 600 degrees and a very nice finish. All pipes have been tested by Tüv and CE. SET4 LOW CLEARANCE 2X 1000MM 2X 340-500 1X T 1X T CAP 1X T ADAPTER 3X BRACKET 1X PLATE 500 1X RAINCAP
Specifications
No specifications.
Twist-Lock double-walled insulated flue pipes, made of high-quality stainless steel, AISI316L, with a maximum protective temperature tested up to 600 degrees and a very nice finish. All pipes have been tested by Tüv and CE. SET4 LOW CLEARANCE 2X 1000MM 2X 340-500 1X T 1X T CAP 1X T ADAPTER 3X BRACKET 1X PLATE 500 1X RAINCAP
No specifications.
