AUXPREMIUM-QSMART-18000BTU-5.4KW-GREY (wifi+frost protection)
Product Information
Product information
Q-SMART GREY SERIES (incl. WIFI and Frost Protection)

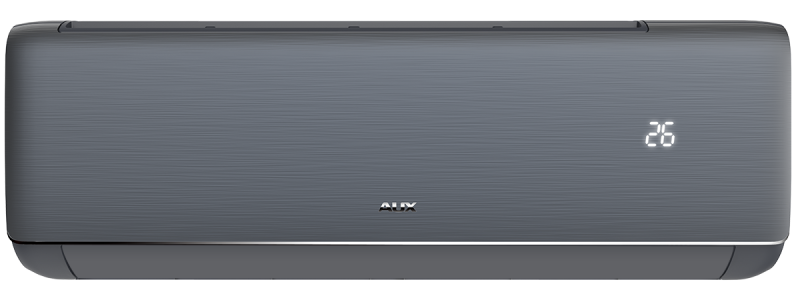

AUX Q-SMART PREMIUM GREY
The air conditioners from the Q-Smart series stand out for their perfect design, refined in every detail. Two attractive color variants, designed according to the latest interior trends, fit perfectly into elegant interiors and subtly emphasize their style.

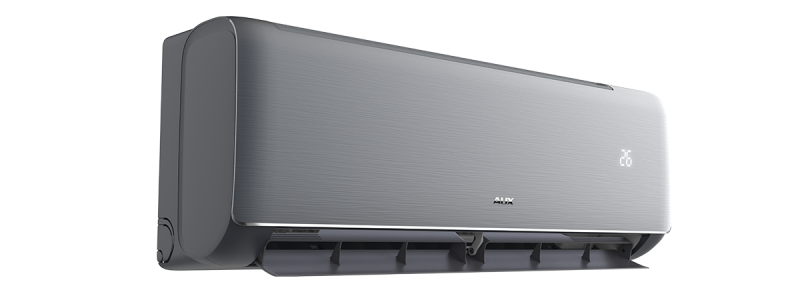

DESIGN
Current trend aesthetics
The Q-Smart air conditioner is characterized by a perfect design, refined in every detail, designed according to the latest interior trends. It fits perfectly into elegant interiors and subtly emphasizes their style.
INTELLIGENT DEFROSTING SYSTEM
Effective operation at low ambient temperatures
The air conditioner activates defrost mode only when necessary and only for the time required to defrost the heat exchanger, allowing the unit to operate almost continuously in heating mode. The intelligent defrost system used in AUX air conditioners improves the energy efficiency of the devices by 5% and increases heating efficiency by as much as 20% at low ambient temperatures.

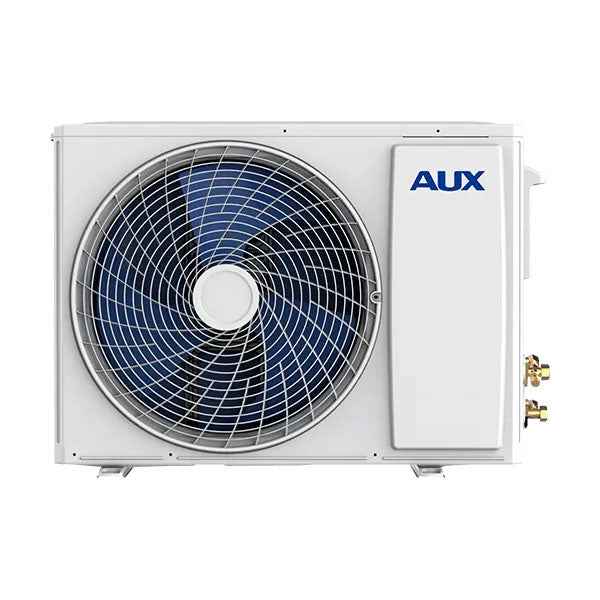

OUTDOOR UNIT DRIP TRAY HEATER
Efficient operation in heating mode
Outdoor units of the AUX commercial air conditioner series are equipped with drip tray heaters, allowing the devices to operate efficiently in heating mode even in severe frost, preventing ice formation on the heat exchanger.

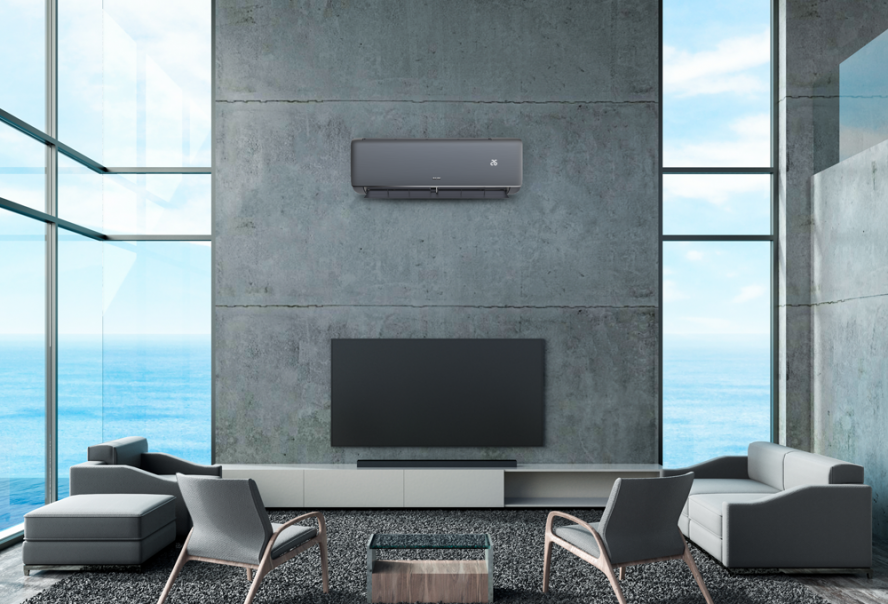

Decorative features
The high quality and aesthetics, combined with the slim shape of the Q-Smart air conditioners, ensure that they fit perfectly into any interior style. They can also be an elegant and discreet decoration.
UV DISINFECTION AT A TEMPERATURE OF 57 ℃
It inhibits the growth of viruses by 99% through effective disinfection.
The best models of the Q-Smart series are equipped with UV lamps that guarantee clean and healthy air. UV sterilization effectively cleans the air by eliminating viruses, fungi, and microbes. This function is especially recommended for people suffering from allergies and those prone to infections. The temperature of the evaporator coils is maintained at 57 ℃ for some time to ensure the best sterilization effect.

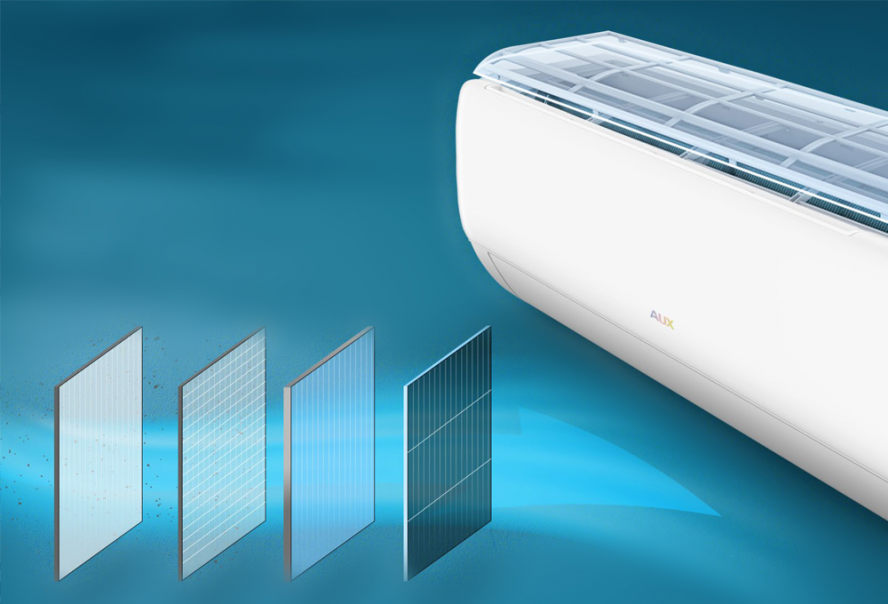

ADVANCED AIR FILTRATION
PM2.5 filter
According to the World Health Organization, prolonged exposure to fine particulate matter PM2.5 leads to a shorter life expectancy. Q-Smart air conditioners are equipped with a PM2.5 filter, which filters fine dust particles suspended in the air and removes 99.9% of these pollutants, ensuring clean and healthy air.
Antibacterial filter
Indispensable for removing all types of bacteria and pathogenic microorganisms that remain on the antibacterial coating of the filter surface. The bactericidal substances inhibit bacterial development.
High-density filter
The air conditioner is equipped with a high-density filter that effectively blocks air pollutants, including dust and particulate matter.
Optional air filters
MAINTAINING A CONSTANT HEATING TEMPERATURE
+8 °C Function
This function allows a constant temperature of +8 °C to be maintained in heating mode during winter, preventing the room from cooling down.
ENVIRONMENTALLY FRIENDLY
Why R32?
Low GWP coefficient
- 675, it does not deplete the ozone layer.
Recyclable
- it can be reused.
High efficiency
- i.e., 30% less refrigerant volume in the system.
Greater energy efficiency
- more savings.
Low toxicity
- safety of use.
WI-FI MODULE
As standard, the air conditioners in the Q-Smart series are equipped with a built-in WI-FI module with a weekly programmer. WI-FI is a convenient solution for smartphone, tablet, and computer users, allowing remote control of air conditioning 24 hours a day.
The application includes numerous functions, including a timer, so no additional drivers are needed. Controlling the air conditioner via the app is simple and convenient.
COMFORT FUNCTIONS
Silent mode
Exceptionally quiet operating mode in which the indoor unit of the air conditioner operates with a reduced sound pressure level, ensuring optimal conditions without excessive noise.
"I FEEL" function
Intelligent "I FEEL" temperature interpretation allows for perfect adjustment of the temperature to the conditions in the room.
Night mode
Automatic temperature control during sleep. The air conditioner increases the set temperature by 1°C per hour during the first two operating hours in cooling mode (in heating mode, it lowers the temperature at the same rate). For the next 5 hours, it maintains the temperature constantly, after which the air conditioner switches off.
Heating mode
By using the heating mode, you can use the air conditioner all year round, even in colder months. Thanks to the heat pump, the device can heat the air in the room, as an alternative to traditional heating systems.
Drying mode
In drying mode, the air conditioner reduces the humidity in the room to the optimal value by automatically adjusting the temperature and airflow to achieve the best conditions. This prevents the growth of molds, fungi, and bacteria.
INSTALLER-FRIENDLY FUNCTIONS AND FEATURES
Easy filter disassembly
Easy access to the motherboard
TECHNICAL DATA
Model |
|
AUX-09QB |
AUX-12QB |
AUX-18QB |
AUX-24QB |
|
Cooling capacity |
[kW] |
2.7 (0.60 - 3.80) |
3.50(0.80-4.10) |
5.40(1.30-5.80) |
6.70 (1.80 - 7.40) |
|
Heating capacity |
[kW] |
3.00 (0.80 - 4.20) |
3.80(1.00- 4.10) |
5.60 (1.30-6.00) |
7.20 (1.80 - 8.20) |
|
Power |
[V~,Hz,Ph] |
220-240, 50,1 |
220-240, 50,1 |
220-240, 50,1 |
220-240, 50,1 |
|
Operating voltage |
Cooling |
[A] |
3.80 |
5.60 |
7.50 |
10.00 |
Heating |
[A] |
4.10 |
4.90 |
7.00 |
9.50 |
|
Energy consumption |
Cooling |
[W] |
800 |
1180 |
1700 |
2200 |
Heating |
[W] |
850 |
1100 |
1600 |
2200 |
|
Maximum power consumption |
[A] |
9.5 |
9.5 |
12.0 |
16.0 |
|
Energy consumption |
[W] |
1900 |
1900 |
2400 |
3400 |
|
SEER/SCOP |
[W/W] |
6.1 / 4.00 |
6.1 /4.00 |
7.3 / 4.3 |
6.1 / 4.0 |
|
Energy efficiency class |
Cooling |
|
A++ |
A++ |
A++ |
A++ |
Heating |
|
A+ |
A+ |
A+ |
A+ |
|
Indoor unit |
|
AUX-09QB/I |
AUX-12QB/I |
AUX-18QB/I |
AUX-24QB/I |
|
Air flow |
[m3/h] |
600 |
600 |
950 |
1300 |
|
Sound pressure level |
[d B(A)] |
38/31/27/22/19 |
38/32/29/23/20 |
41/32/31/26/23 |
38/36/33/31/23 |
|
Sound power level |
[d B(A)] |
44/40/39/31/24 |
44/40/36/32/23 |
43/40/37/35/30 |
48/43/40/37/28 |
|
Indoor unit dimensions |
[mm] |
761 X 295 X 200 |
761 X 295 X 200 |
960x316x212 |
1090 328x227 |
|
