AUX PREMIUM DUCTED 5KW
AUX PREMIUM DUCTED 5KW
Sale price€695,00
Product Information
Product information

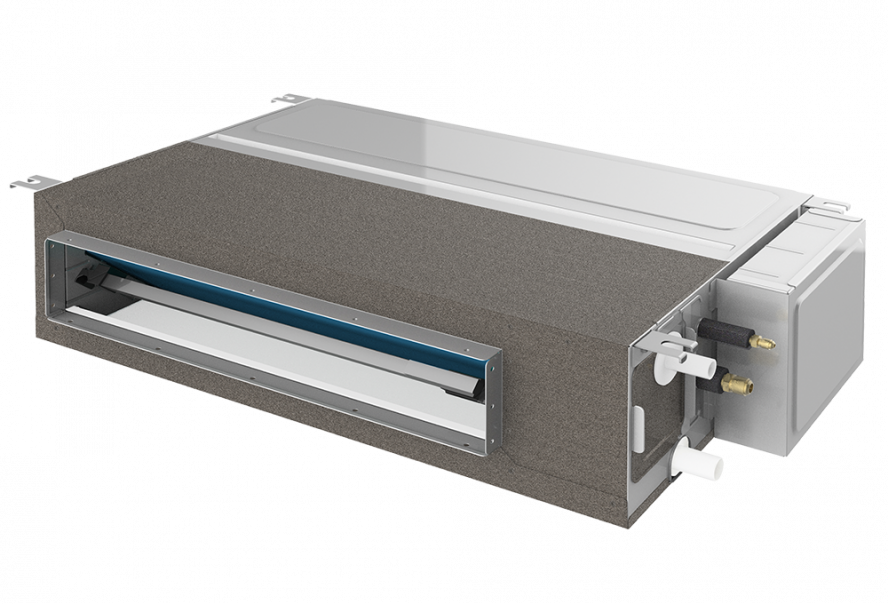

DUCTED UNITS
AUX-M-D(07/09/12/18/24)/I
- SLIM DESIGN - ONLY 200mm OF THICKNESS
Thanks to the extremely flat design, the AUX duct units are perfect for rooms with limited installation space. The low height of the casing - only 200 mm - makes it possible to install the unit even in low ceiling spaces. -

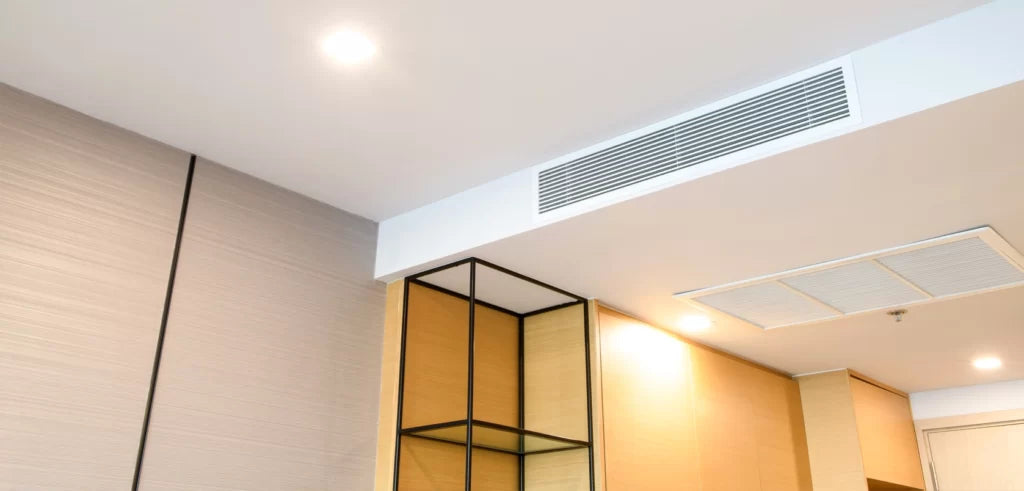

IDDEN AIR CONDITIONING SYSTEM
Duct units are designed to be built-in - they offer silent operation and wide range of installation modes. Once installed in the suspended ceiling, they are invisible, and the air is distributed through channels to the vents which can be designed flexibly
BUILD-IN CONDENSATE PUMP
Lifting height up to 70 cm
The AUX duct unit can be additionally equipped with a condensate pump, which allows to drain the water condensate up to 70 cm above the drain pan level.
TECHNICAL DATA
| Model | AUX-M-D07/I | AUX-M-D09/I | AUX-M-D12/I | AUX-M-D18/I | AUX-M-D24/I | ||
| Cooling capacity | [kW] | 2,20 (1,13 – 2,70) | 2,60 (1,50 – 3,55) | 3,52 (1,35 – 4,40) | 5,28 (1,53 – 5,60) | 7,03 (2,16 – 8,20) | |
|---|---|---|---|---|---|---|---|
| [Btu/h] | 7506 (3855 – 9220) | 8872 (5120 – 12115) | 12000 (4600 – 15000) | 18000 (5200 – 19100) | 24000 (7400 – 28000) | ||
| Heating capacity | [kW] | 2,50 (1,34 – 3,17) | 2,90 (1,70 – 3,65) | 3,81 (1,24 – 5,30) | 5,60 (1,40 – 6,20) | 7,91 (1,98 – 9,30) | |
| [Btu/h] | 8530 (4575 – 10820) | 9895 (5800 – 12450) | 13000 (4200 – 18100) | 19100 (4800 – 21200) | 27000 (6800 – 31700) | ||
| Power supply | [V~,Hz,Ph] | 220-240, 50, 1 | 220-240, 50, 1 | 220-240, 50, 1 | 220-240, 50, 1 | 220-240, 50, 1 | |
| Power consumption in cooling mode | [W] | 55 | 55 | 60 | 90 | 150 | |
| Power consumption in heating mode | [W] | 55 | 55 | 60 | 90 | 150 | |
| Fan motor power | [W] | 40 | 40 | 50 | 73 | 120 | |
| Fan speed (high / medium / low) | [rpm] | 1020/870/780 | 1020/870/780 | 980/880/800 | 1180/1050/930 | 1200/1065/960 | |
| Airflow (high / medium / low) | [m³/h] | 600/450/380 | 600/450/380 | 720/600/500 | 900/750/630 | 1400/1190/980 | |
| Sound pressure level | [dB(A)] | 37/33/30 | 37/33/30 | 36/34/32 | 41/37/34 | 42/39/36 | |
| Sound power level | [dB(A)] | 53 | 53 | 49 | 56 | 55 | |
| ESP | [Pa] | 10/30 | 10/30 | 25 (0 ~ 80) | 25 (0 ~ 80) | 25 (0 ~ 80) | |
| Unit dimensions | [mm] | 700 x 470 x 200 | 700 x 470 x 200 | 700 x 700 x 245 | 700 x 700 x 245 | 1000 x 700 x 245 | |
| Unit weight (net) | [kg] | 18,5 | 18,5 | 21,0 | 22,0 | 29,5 | |
| Refrigerant | – | R32 | R32 | R32 | R32 | R32 | |
| Pipe connections (diameter) | Liquid | [mm/(inch)] | 6,35 (1/4) | 6,35 (1/4) | 6,35 (1/4) | 6,35 (1/4) | 9,52 (3/8) |
| Gas | [mm/(inch)] | 9,52 (3/8) | 9,52 (3/8) | 12,70 (1/2) | 12,70 (1/2) | 15,88 (5/8) | |
| Condensate | [mm] | 16,50 | 16,50 | 16,50 | 16,50 | 16,50 | |
Specifications
